Space Hub

Always-on remote access to IAQ data
(formerly Hub for Business)

Space Hub is an integral part of the Airthings for Business solution which collects data from in-range sensors and provides real-time access to all the information you need to optimize air quality and energy use in your building.

Connect up to 30 battery-operated devices through Airthings Smartlink.

Additional product information for the Space Pro

Screenshot 2024-07-08 100101.png

Up to 4 years battery life

Adjust specific sensor sample intervals to maximize battery life or use USB-C connection

Customizable display



Choose what you show on the display

Scalable



Seamlessly integrates into current Airthings for Business solution making it easy to scale up over time

Secure

Secure and encrypted end-to-end solution

Long range



Long range connection to the cellular-powered Space Hub eliminating the need for stable WiFi

Plug and play



Simple and intuitive installation requiring no tools

Wave to check air quality



Set your own thresholds and wave for air quality information

Over the cloud updates

Constant improvements and over-the-cloud upgrades delivered to device

More sensors, more insights

The most advanced air quality tech

Space Pro (formerly View Plus for Business) is battery operated or uses a USB plug, includes a customizable display and online dashboard with full data and reporting.

Specifications

Recommended Operating Conditions: temperature 4 to 40°C /  39 to 104°F, Humidity 0% to 85% (non condensing).

Prolonged exposure at very dry or humid conditions may affect visual appearance of the display.

Weight: 360g (with batteries, without cable)

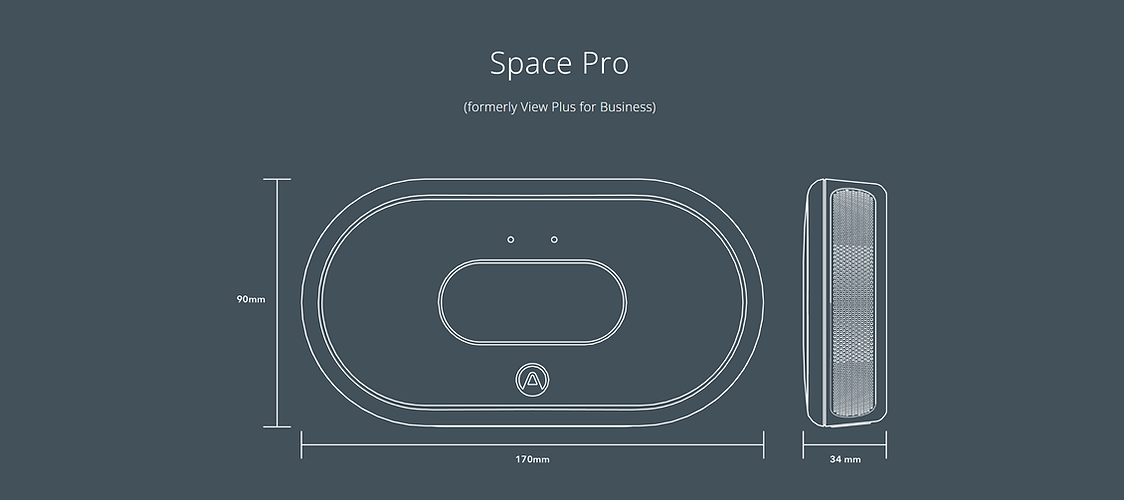

Dimensions: 17 cm (length) x 9 cm (width) x 3.3 cm (height)

Power: 6 AA batteries or USB-C

Connectivity: Airthings SmartLink & Bluetooth Low Energy

Privacy: Noise Indicator used for measuring sound pressure level only, no privacy concerns

IAQ sensor specifications

Sensor sampling interval: Configurable

Temperature / Humidity / Pressure:

  • Temperature Accuracy: ±0.5 °C / ±1 °F

  • Humidity Accuracy: ±3%

  • Pressure Accuracy: ±0.6 hPa



VOC:

  • Technology: Metal-oxide based gas sensor

  • Settling Time:  ~7 days



CO2:

NDIR Sensor (Non-Dispersive Infra-Red):

  • Measurement range 400–5000 ppm
    Accuracy ±50ppm ±5% at 400-2000 ppm within 10 – 35°C / 50 - 95°F and 0 – 80%RH, after initial calibration time of 7 days

  • Resolution: 1 ppm



Particulate Matter:

  • Technology: laser scattering based optical particle counter

  • Particle size detection range: 300 nm to 10 um

  • Measurement Range (PM2.5): 1~1000 μg/m³

  • Measurement Accuracy (PM2.5): ± (5 μg/m³ + 15%). Calibrated with a GRIMM reference instrument using cigarette smoke source.

  • Resolution: 1 μg/m³



Light sensor:

  • Measurement range: 0 - 100 %



Noise sensor:

  • Dynamic range: 35 - 120 dBA SPL
    (optimization pending)



Virus sensor:

  • Virtual sensor

Additional information

What's in the box

  • Air Quality Monitor

  • 6 AA batteries

  • Double-sided tape

Any questions or need more information?

User manual

Installation Guide

Contact us

Product Sheet
